| Hardware | |
| CPU | Quad-core ARM Cortex A7 @717MHz |
| RAM | 512MB |
| FLASH | 32MB+8GB eMMC |
| Cellular Interface | |
| Modem | 1 x 5G NR SA/NSA |

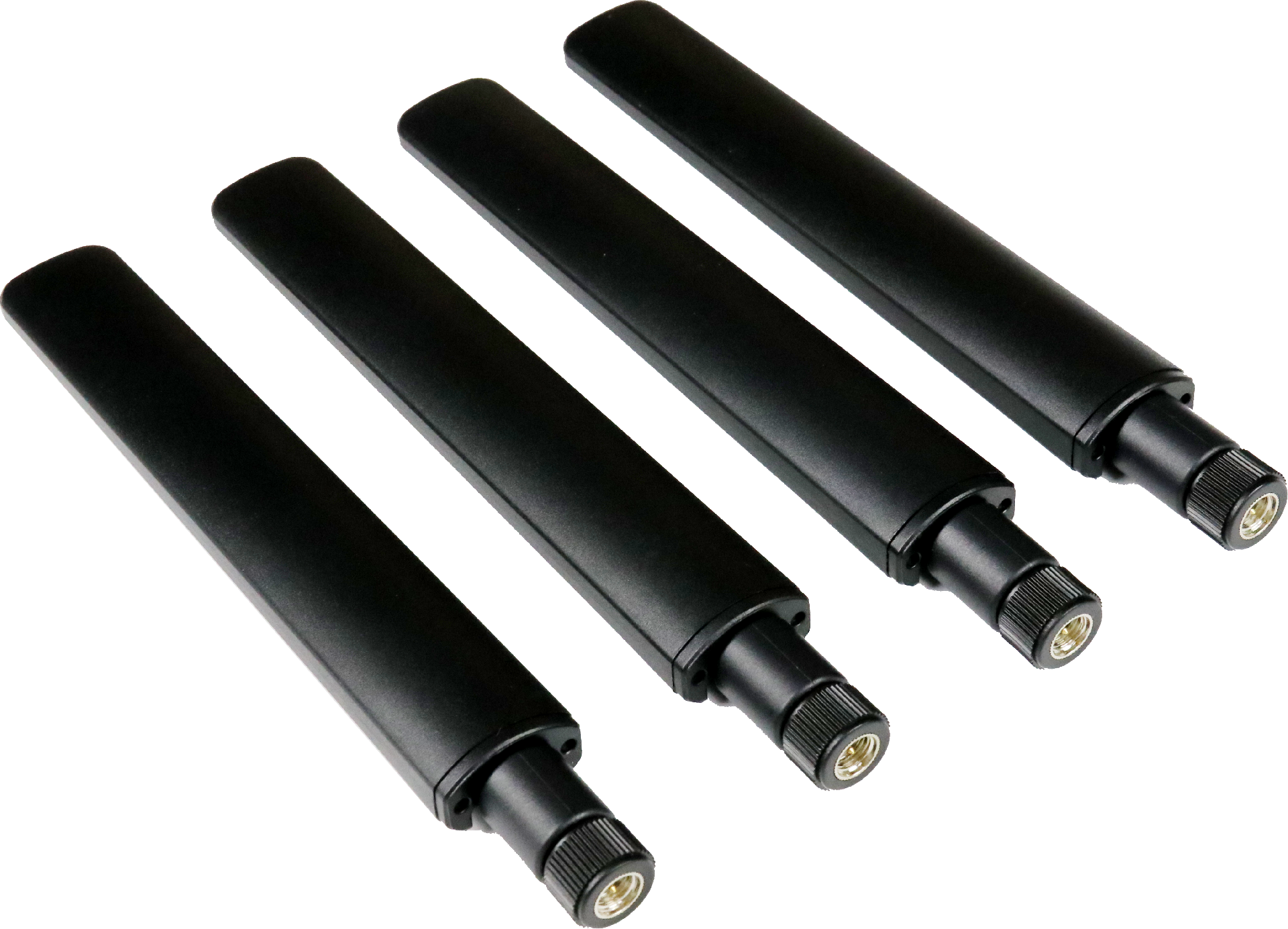

| Number of Antennas | 4 |
| Connector | SMA-K |
| SIM | 2 x Mini SIM (2FF) |
| Wireless Interface | |
| Standards | 802.11b/g/n, AP or station modes |
| Frequency Bands | 2.4 GHz |
| Speed | 150Mbps |
| Security | WEP, WPA, WPA2 |
| Encryption | 64/128 AES, TKIP |
| Antennas | 1 |
| Connector | SMA-K |
| GNSS Interface | |
| Number of Antennas | 1 (only for GPS version，Share with WiFi) |
| Connector | SMA-K with 50 ohms impedance |
| Dead Reckoning | N/A |
| Peripheral Interface | |

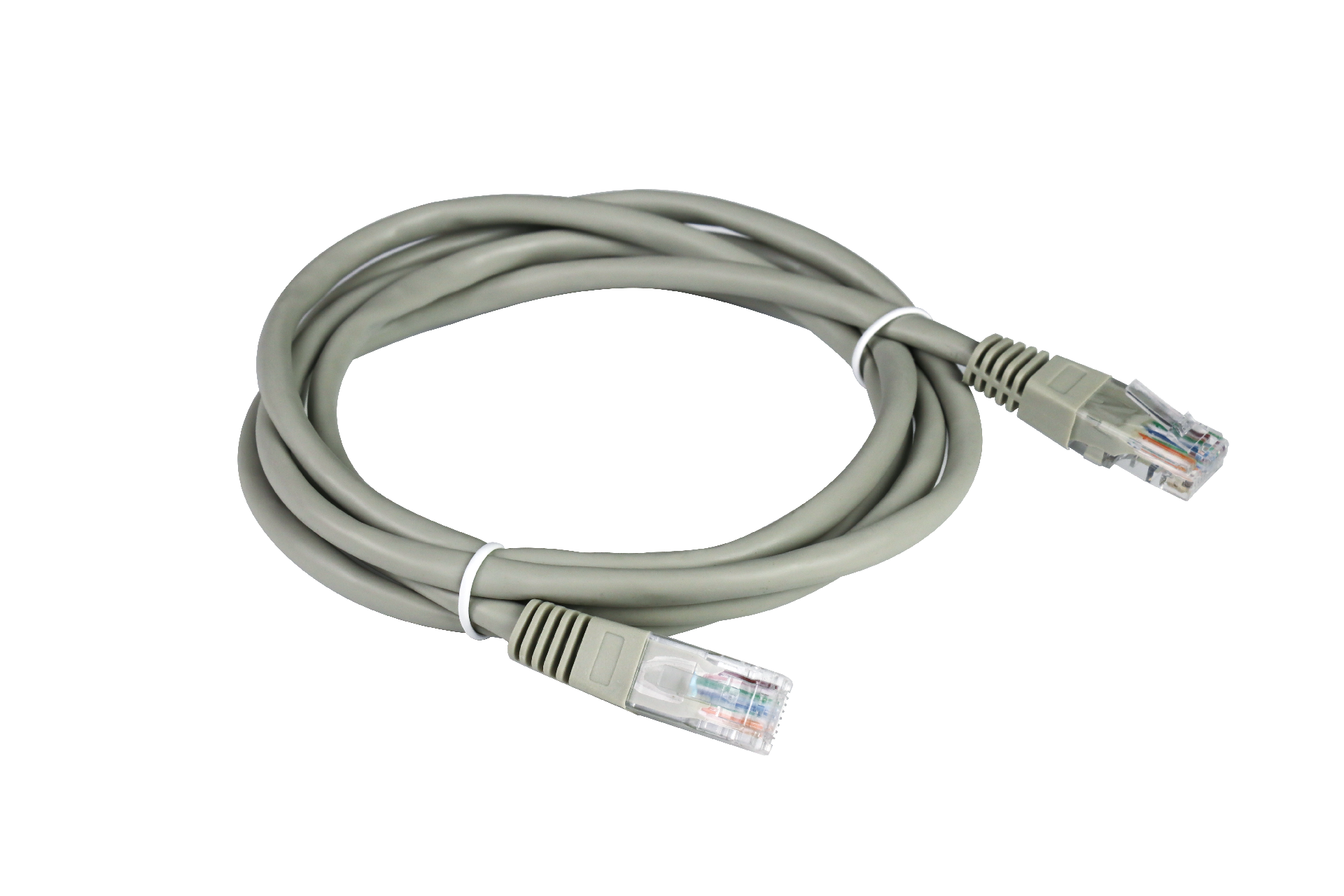

| Ethernet | 1 × LAN 10/100/1000 Mbps + 1 × WAN/LAN 10/100/1000 Mbps, Gigabit Ethernet |
| Serial Type | 1 x RS-232 + 1 x RS-485 serial port |
| Socket Form | 1 x 7-pin 3.5 mm female socket |
| Signal Definition | RX,TX,GND (RS-232) A+,B-,GND (RS-485) |
| Baudrate | RS-232 (300-115200bps) RS-485 (300-115200bps) |
| AVOUT | N/A |
| GPIO | N/A |
| SD card | TF card slot |
| USB | |
| Video port | N/A |
| Audio Port | N/A |
| Software | |
| Auto Fail-over | Between: Cellular and WAN Cellular and Wi-Fi (station mode) WAN and Wi-Fi (station mode) |
| Network Protocols | PPP, PPPoE, TCP, UDP, IPv4, IPv6, SSL, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, Telnet, SSH, DDNS, etc. |
| Routing | Static Routing, Policy routing, RIP, OSPF and BGP, etc. |
| Firewall | NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List |
| VPN | PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN |
| Remote Management | HTTP, Telnet, SSH, SMS SNMP V1/V2/V3, SNMP TRAP Hongdian Wedora Cloud Platform |
| Serial Ports Function | Transparent, Modbus RTU, etc. |
| Power Supply and Consumption | |
| Connector | 2 pin socket |
| Voltage Input | +9V~+36V DC |
| Power Consumption | Idle: 350mA@12V DC Data transceiving:1.3A@12V DC |
| Others | |
| Reset Button | Yes |
| LED Indicators | 4 x indicators for WiFi, SIG, NET, SYS |
| Hardware Watchdog | Yes |
| Physical Characteristics | |
| Ingress Protection | IP66 |
| Housing & Weight | Metal, 290g |
| Dimension | 137×83×24(mm) |

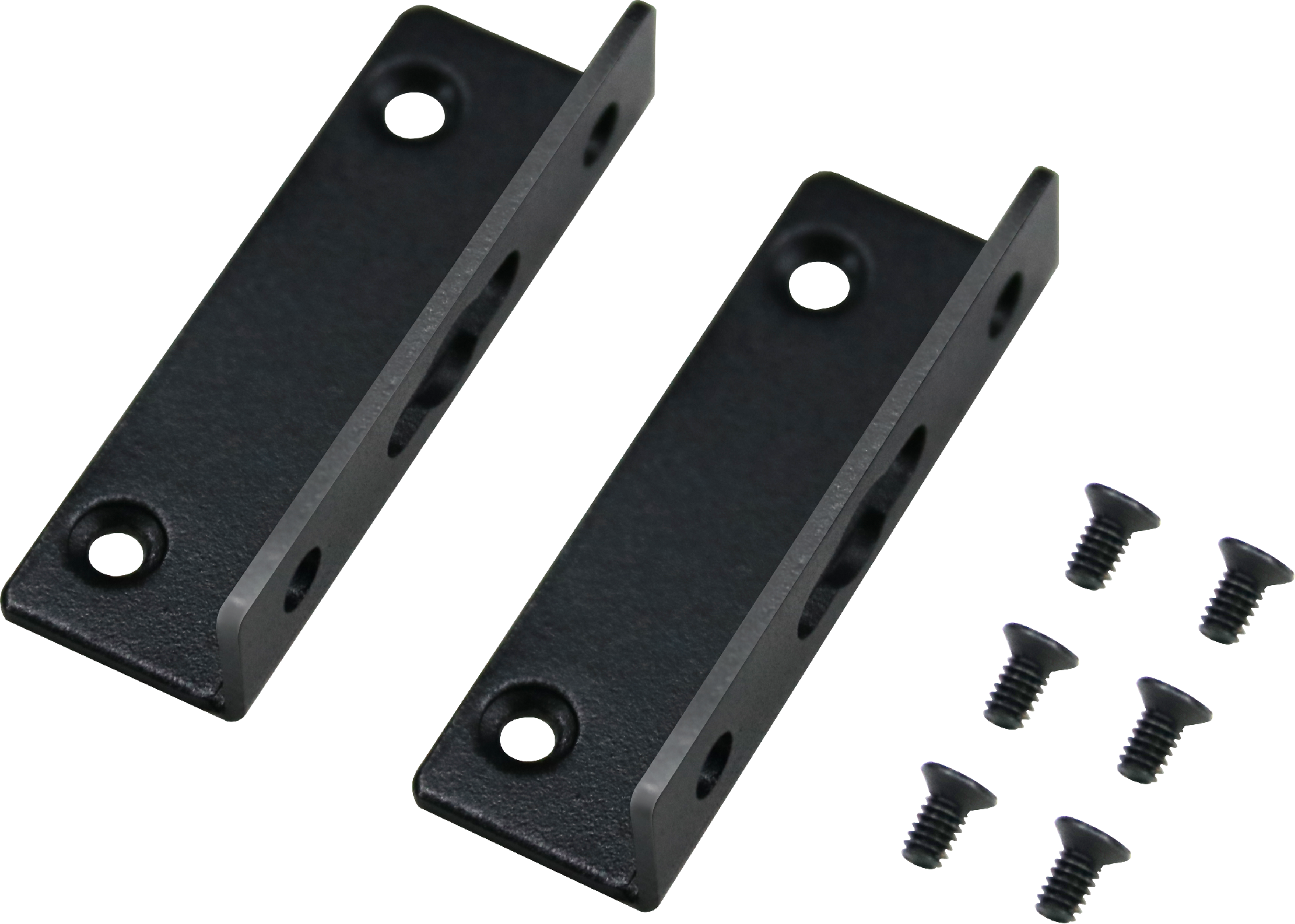

| Installations | Desktop, wall mounting and DIN rail mounting |
| Operating Temperature | -30 ~ +70℃ |
| Storage Temperature | -40 ~ +85 °C |
| Relative Humidity | 5 ~ 95% |
| EMC | |
| ESD | EN61000-4-2, level3 |
| RS | EN 61000-4-3, level3 |
| EFT | EN 61000-4-4, level3 |
| CS | EN 61000-4-6, level3 |
| Product | Part No. | Frequency | Interface | Region | ||||
| 5G modem | WLAN | RJ45 | RS232 | RS485 | ||||

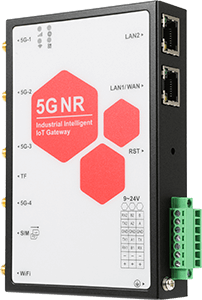

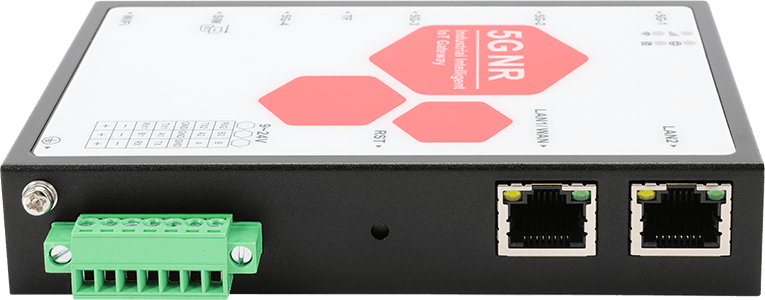

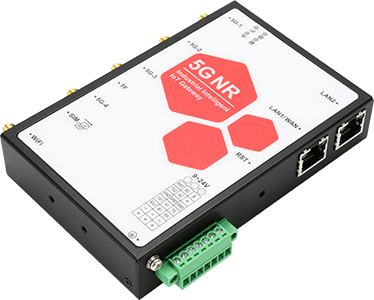

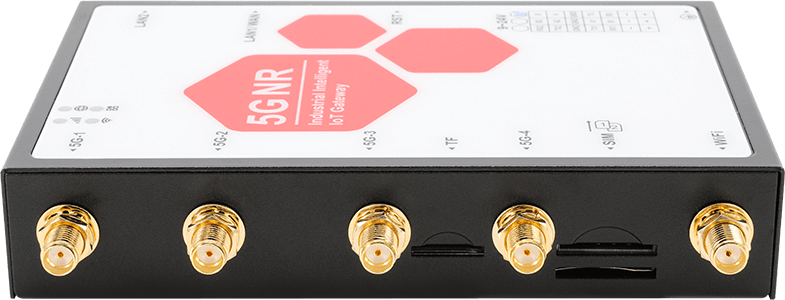

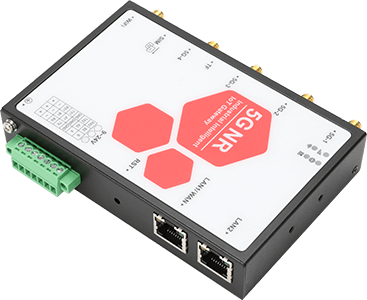

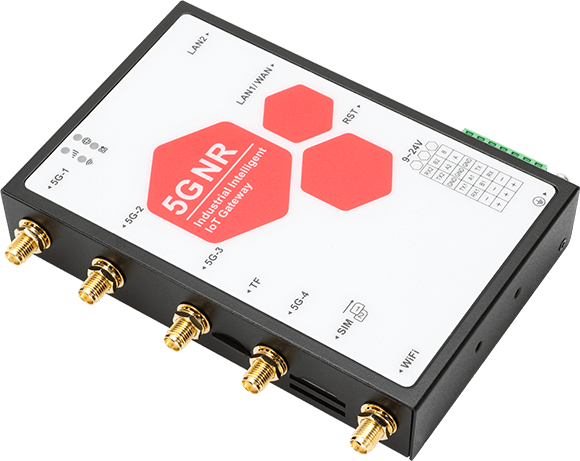

| Z2 5G Industrial Gateway | Z2-N005-W-2R-CS | NSA/SA: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12(B17)/B13/B14/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48 LTE DL 4×4 MIMO: B1/B2/B3/B4/B7/B25/B30/B32/B34/B38/39/B40/B41/B42/B43/B48/B66 LAA: B46(only support 2×2 MIMO) WCDMA: B1/B2/B3/B4/B5/B6/B8/B19 | 1 | 1 | 2 | 1 | 1 | Global |
