Smart 3000 5G Edge AI Box

4G/5G/LoRa/WiFi/Ethernet link-backup for high reliability
Support multiple AI algorithms and can independently perform local video & audio AI algorithm analysis
Support edge control function and can become an edge intelligent control brain
Local AI processing and cloud platforms alarm remote collaboration

Product Introduction

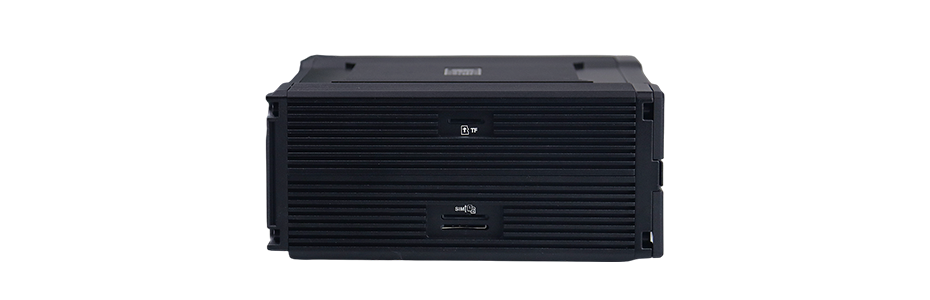

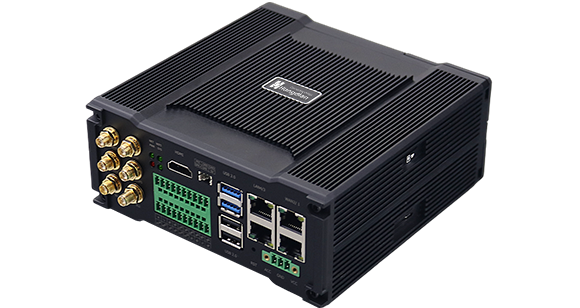

Smart3000 5G Edge AI Box is a powerful and stable AIoT intelligent terminal equipped with an AI intelligent processing chip and embedded with mature algorithms based on deep learning. It is paired with Hongdian self-developed OSDT system and integrated with Hongdian self-developed AI algorithm model, and can be widely used in scenarios such as smart power, smart transportation, smart construction, smart gas, etc.

Features Tech Specs Downloads

AI computing power

Support four major categories of AI algorithms, including dozens of industry AI algorithms such as helmet, work clothes, smoking, flame, smoke, water level, and cross-border, the computing power is as high as 6TOPS.

Edge control

Support combination with other node devices, integrating control, calculation, and analysis to provide a super brain for the site.

Stable operation

Support wired/cellular backup, multi-mode backup, software and hardware dual watchdog, never crash, 5G LAN, network cutting, multi-DNN, and frequency locking.

Rich interfaces

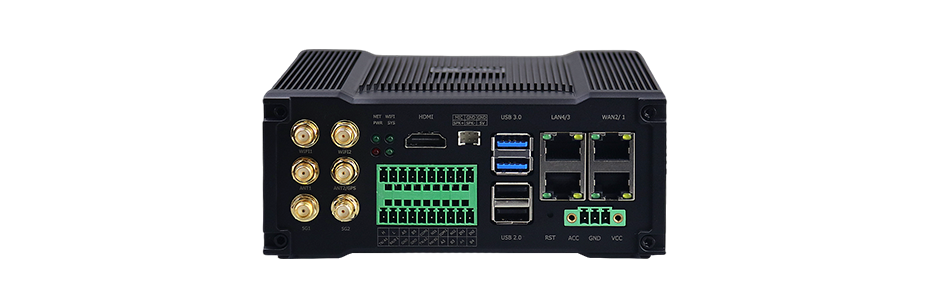

Equipped with rich interfaces such as RJ45, RS232, RS485, CAN, HDMI, etc., to transmit data in various ways.

Hardware
CPU	8 core CPU ARM Cortex-A76 + Dual core ARM Cortex-A55 @1.8GHz
NPU	6Tops
Memory	8GB/12GB
Built-in storage	32GB/64GB
Cellular Interface
Modem	1 × LTE Cat4 or 1 × 5G NR SA/NSA
Number of Antennas	2 (LTE version) or 4 (NR version)
Connector	SMA-K
SIM	2×Mini SIM (2FF)（eSIM Optional）
Wireless Interface
Standards	802.11b/g/n/ac/ax, AP or station modes
Frequency Bands	2.4 GHz & 5GHz
Speed	1350Mbps (LTE version) or 750Mbps (NR version)
Security	WEP, WPA, WPA2
Encryption	64/128 AES, TKIP
Antennas	3 (LTE version) or 2 (NR version)
Connector	SMA-K
GNSS Interface
Number of Antennas	1(Optional)
Connector	SMA-K
Peripheral Interface
Ethernet	2 × LAN 10/100/1000Mbps + 2 × WAN/LAN 10/100/1000Mbps, Gigabit Ethernet
Serial	2 × RS-232 + 3 × RS-485 serial port
USB	2 × USB3.0, 2 × USB2.0
TF Card	1
Can	1
I/O	2 × Relay Switch, 2 × DI
Audio	Audio IN/OUT
Display	1 × HDMI, maximum resolution 2K@30Hz, support audio
Software
Video code	H.265/H.264/VP9, 4K@60fpsHD video decoding
Image processing	BMP, JPG, PNG, GIF
Auto Fail-over	Between: Cellular and WAN Cellular and Wi-Fi (station mode) WAN and Wi-Fi (station mode)
Network	Muti-DNN, APN, VPDN, QoS，5G LAN
Docker	Support docker container function
AI algorithm	Face application, fall application, flame application, people flow application, counting application, license plate application, area intrusion, petroleum work clothes application, phone call application, safety helmet application, reflective clothing application, smoke application, water gauge application, animal application, lighting application, mask application, motion detection.
Firewall	NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List
VPN	PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN
Remote Management	HTTP, Telnet, SSH, SMS SNMP V1/V2/V3, SNMP TRAP Hongdian Wedora Cloud Platform,SDLAN
Serial Ports Function	Transparent, Modbus RTU, etc.
Power Supply and Consumption
Connector	3 pin socket
Voltage Input	DC 9~36V, including ACC
Power Consumption	Idle: 333mA@12V DC, Data transceiving: 598mA@12V DC
Others
Reset Button	Yes
LED Indicators	4 x indicators for SYS, WiFi, NET, PWR
Hardware Watchdog	Yes
Physical Characteristics
Ingress Protection	IP30
Housing & Weight	Aluminum+ABS plastic, about 900g
Dimension	145×144×64(mm)
Installations	Wall-mounting
Operating Temperature	-20 ~ +70 °C
Storage Temperature	-40 ~ +80 °C
Relative Humidity	0~90%(no condensation)
EMC
ESD	EN61000-4-2, level3
RS	EN 61000-4-3, level3
EFT	EN 61000-4-4, level3
CS	EN 61000-4-6, level3
