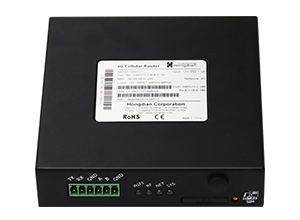

      Cellular Router
      Hongdian cellular router series is designed in strict accordance with industrial standards, with built-in high-performance processor, embedded operating system and high-quality 4G/5G module. It has excellent qualities such as high/low temperature resistance, dustproof, earthquake resistance and strong electromagnetic interference resistance. It is widely used in finance, media, transportation, vehicle, electric power, environmental protection, industrial automation, commercial chain and other industries.
      contact us
      Product Value
      Stable cellular wireless network access
      Low wired network installation cost, and the wireless network is more convenient

      01

      Link encryption ensures data security
      Low risk of data breaches and attacks on public networks

      02

      Centralized management
      The equipment can be managed remotely, and the on-site operation and maintenance costs are low

      03

      Work in unattended and harsh environments
      Industrial grade routers can meet the 7×24 hours of stable operation

      04

      Product Advantages
      Support global carriers
      Secure and reliable networking
      100,000,00+ devices deployment worldwide
      Cloud platform remote operation and maintenance
      Product Comparison Table
      Product
      Cellular Router H8951 H8959 H7960 H8922S H8860 H8923
      Hardware
      CPU MIPS 24Kc @580 MHz MIPS 24Kc @580 MHz MIPS 24Kc @580 MHz MIPS 24Kc @580 MHz Quad-core ARM Cortex-A7 @717MHz MIPS1004Kc @880 MHz
      RAM 128MB 128MB 128MB 128MB 512MB 256MB
      FLASH 16MB 16MB 16MB 16MB 32MB 32MB
      Cellular Interface
      Modem 1 x LTE CAT4 1 x LTE CAT1/CAT4 1 x LTE CAT4 1 or 2 x LTE CAT4 1 x 5G NR SA/NSA or 1 x LTE or 1 x LTE & 1 x 5G NR SA/NSA 1 x 5G NR SA/NSA or 2 x LTE-A or 1 x LTE-A & 1 x 5G NR SA/NSA
      Number of antennas 2 2 2 2 2 or 4 4
      Connector SMA-K SMA-K SMA-K SMA-K SMA-K SMA-K
      SIM 1 x Mini SIM (2FF) 1 x Mini SIM (2FF) 2 x Mini SIM (2FF) 2 x Mini SIM (2FF) 2 x Mini SIM (2FF) 2 x Mini SIM (2FF)
      Ethernet Interface
      Number of ports 2 x 10/100 Mbps, Ethernet 2 x 10/100 Mbps, Ethernet 4 x 10/100 Mbps, Ethernet 5 x 10/100 Mbps, Ethernet 4 x 10/100/1000 Mbps, Gigabit Ethernet 5 x 10/100/1000 Mbps, Gigabit Ethernet
      Configuration 2 x LAN or 1 x LAN + 1 x WAN 2 x LAN or 1 x LAN + 1 x WAN 4 x LAN or 3 x LAN + 1 x WAN 5 x LAN or 4 x LAN + 1 x WAN 4 x LAN or 3 x LAN + 1 x WAN 4 x LAN + 1 x WAN
      PoE output N/A N/A 4 x POE+ 30W output N/A N/A N/A
      Wireless interface
      Standards 802.11b/g/n, AP or station mode 802.11b/g/n, AP or station mode 802.11b/g/n, AP or station mode 802.11b/g/n, AP or station mode 802.11b/g/n/ac, AP or station modes 802.11b/g/n/ac, AP or station mode
      Frequency bands 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz & 5GHz 2.4 GHz & 5GHz
      Speed 150Mbps 150Mbps 150Mbps 150Mbps 1167Mbps 1167Mbps
      Security WEP, WPA, WPA2 WEP, WPA, WPA2 WEP, WPA, WPA2 WEP, WPA, WPA2 WEP, WPA, WPA2 WEP, WPA, WPA2
      Encryption 64/128 AES, TKIP 64/128 AES, TKIP 64/128 AES, TKIP 64/128 AES, TKIP 64/128 AES, TKIP 64/128 AES, TKIP
      Antennas 1 1 1 1 4 2 x 2 MIMO
      (1 would be used in GPS version)
      Connector SMA-K RPSMA-K RPSMA-K RPSMA-K RPSMA-K SMA-K
      GNSS interface
      Number of antennas N/A N/A 1 (only for GPS version) 1 (only for GPS version) 1 (only for GPS version) N/A
      Connector SMA-K with 50 ohms impedance SMA-K with 50 ohms impedance SMA-K with 50 ohms impedance SMA-K with 50 ohms impedance
      Dead Reckoning Optional N/A N/A N/A
      Seiral interface
      Type 1 x RS-232 or 1 x RS-485 serial port N/A 1 x RS-232 + 1 x RS-485 serial port 1 x RS-232 + 1 x RS-485 serial port N/A 1 x RS-232 + 1 x RS-485 serial port
      Socket form 1 x 6-pin 3.5 mm female socket 1 x 9-pin 3.5 mm female socket 1 x  6-pin 3.5 mm female socket 1 x 5-pin 3.5 mm female socket
      Signal definition RX,TX,GND (RS-232)
      A+,B-,GND (RS-485)       		RX,TX,GND (RS-232)
      A+,B-,GND (RS-485)       		RX,TX,GND (RS-232)
      A+,B-,GND (RS-485)       		RX,TX,GND (RS-232)
      A+,B-,GND (RS-485)
      Baudrate RS-232 (300-115200bps)
      RS-485 (300-115200bps)       		RS-232 (300-115200bps)
      RS-485 (300-115200bps)       		RS-232 (300-115200bps)
      RS-485 (300-115200bps)       		RS-232 (300-115200bps)
      RS-485 (300-115200bps)
      Software
      Auto fail-over Between:
      Cellular and WAN
      Cellular and Wi-Fi (station mode)
      WAN and Wi-Fi (station mode)       		Between:
      Cellular and WAN
      Cellular and Wi-Fi (station mode)
      WAN and Wi-Fi (station mode)       		Between:
      Cellular and WAN
      Cellular and Wi-Fi (station mode)
      WAN and Wi-Fi (station mode)       		Between:
      2 Cellulars
      Cellular and WAN
      Cellular and Wi-Fi (station mode)
      WAN and Wi-Fi (station mode)       		Between:
      2 Cellulars
      Cellular and WAN
      Cellular and Wi-Fi (station mode)
      WAN and Wi-Fi (station mode)       		Between:
      2 Cellulars
      Cellular and WAN
      Cellular and Wi-Fi (station mode)
      WAN and Wi-Fi (station mode)
      Network protocols PPP, PPPoE, TCP, UDP, IPv4, IPv6, SSL, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, Telnet, SSH, DDNS, etc. PPP, PPPoE, TCP, UDP, IPv4, IPv6, SSL, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, Telnet, SSH, DDNS, etc. PPP, PPPoE, TCP, UDP, IPv4, IPv6, SSL, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, Telnet, SSH, DDNS, etc. PPP, PPPoE, TCP, UDP, IPv4, IPv6, SSL, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, Telnet, SSH, DDNS, etc. PPP, PPPoE, TCP, UDP, IPv4, IPv6, SSL, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, Telnet, SSH, DDNS, etc. PPP, PPPoE, TCP, UDP, IPv4, IPv6, SSL, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, Telnet, SSH, DDNS, etc.
      Network APN, VPDN, VLAN, QoS APN, VPDN, VLAN, QoS APN, VPDN, VLAN, QoS APN, VPDN, VLAN, QoS APN, VPDN, VLAN, QoS APN, VPDN, VLAN, QoS
      Routing Static Routing, Policy routing, RIP, OSPF and BGP, etc Static Routing, Policy routing, RIP, OSPF and BGP, etc Static Routing, Policy routing, RIP, OSPF and BGP, etc Static Routing, Policy routing, RIP, OSPF and BGP, etc Static Routing, Policy routing, RIP, OSPF and BGP, etc Static Routing, Policy routing, RIP, OSPF and BGP, etc
      Firewall NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List
      VPN PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN/WireGuard PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN/WireGuard PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN/WireGuard PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN/WireGuard PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN/WireGuard
      Ipsec Encryption DES, 3DES, AES128, AES192, AES256 DES, 3DES, AES128, AES192, AES256 DES, 3DES, AES128, AES192, AES256 DES, 3DES, AES128, AES192, AES256 DES, 3DES, AES128, AES192, AES256 DES, 3DES, AES128, AES192, AES256
      OpenVPN Encryption BF-CBC, DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC,
      AES-192-CBC, AES-256-CBC, SEED-CBC       		BF-CBC, DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC,
      AES-192-CBC, AES-256-CBC, SEED-CBC       		BF-CBC, DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC,
      AES-192-CBC, AES-256-CBC, SEED-CBC       		BF-CBC, DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC,
      AES-192-CBC, AES-256-CBC, SEED-CBC       		BF-CBC, DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC,
      AES-192-CBC, AES-256-CBC, SEED-CBC       		BF-CBC, DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC,
      AES-192-CBC, AES-256-CBC, SEED-CBC
      Remote Management HTTP, Telnet, SSH, SMS, SNMP V1/V2/V3, SNMP TRAP, Hongdian Wedora Cloud Platform, SDLAN HTTP, Telnet, SSH, SMS, SNMP V1/V2/V3, SNMP TRAP, Hongdian Wedora Cloud Platform, SDLAN HTTP, Telnet, SSH, SMS, SNMP V1/V2/V3, SNMP TRAP, Hongdian Wedora Cloud Platform, SDLAN HTTP, Telnet, SSH, SMS, SNMP V1/V2/V3, SNMP TRAP, Hongdian Wedora Cloud Platform, SDLAN HTTP, Telnet, SSH, SMS, SNMP V1/V2/V3, SNMP TRAP, Hongdian Wedora Cloud Platform, SDLAN HTTP, Telnet, SSH, SMS, SNMP V1/V2/V3, SNMP TRAP, Hongdian Wedora Cloud Platform, SDLAN
      Serial ports function Transparent, Modbus RTU, etc N/A Transparent, Modbus RTU, etc Transparent, Modbus RTU, etc N/A Transparent, Modbus RTU, etc
      Power Supply and Consumption
      Power Connector DC socket DC socket 4 pin socket DC socket DC socket or 2 pin socket DC socket
      Voltage input +5V~+36V DC +9V~+12V DC +9V~+54V DC +5V~+36V DC +9V~+48V DC +9V~+36V DC
      Power consumption Idle: 100mA@12V DC
      Data transceiving: 350mA@12V DC       		Idle: 100mA@12V DC
      Data transceiving: 350mA@12V DC       		Idle: 100mA@12V DC
      Data transceiving: 350mA@12V DC       		Idle: 200mA@12V DC
      Data transceiving:550mA@12V DC       		Idle: 400mA@12V DC
      Data transceiving: 2A@12V DC       		Idle: 350mA@12V DC
      Data transceiving:900mA@12V DC
      Others
      Reset button Yes Yes Yes Yes Yes Yes
      LED indicators 4 x indicators for WiFi, RF, NET, SYS 8 x indicators for Modem, Power, WLAN, Ether, Signal 4 x  indicators for SYS, SIG, NEY, WIFI 10 x  indicators for PWR, SYS, WAN, LAN1~LAN4, RF, NET, WLAN 4 x  indicators for WiFi, SIG, NET, SYS 9 x  indicators for PWR, NET1, NET2, DATA, WIFI2.4GHz, WIFI5GHz, Signal
      Hardware watchdog Yes Yes Yes Yes Yes Yes
      Physical Characteristics
      Ingress protection IP30 IP30 IP30 IP30 IP30 IP30
      Housing & Weight Metal, 300g Metal, 300g Metal, 480g Metal, 540g Metal, 900g Metal, 550g
      Dimension 99.7×98.8×23.4(mm) 102.8×98.8×23.4(mm) 147×98×36.6(mm) 176×105×25(mm) 180×125×48(mm) 177.8×105.2×28.5(mm)
      Installations Desktop, wall mounting Desktop, wall mounting Desktop, wall mounting and 35 mm DIN rail mounting Desktop, wall mounting Desktop,35 mm DIN rail mounting Desktop, wall mounting
      Operating temperature -30 ~ +75℃ -30 ~ +75℃ -30 ~ +70℃ -30 ~ +70℃ -30 ~ +75℃ -30 ~ +75 °C
      Storage temperature -40 ~ +85 °C -40 ~ +85 °C -40 ~ +85 °C -40 ~ +85 °C -40 ~ +85 °C -40 ~ +85 °C
      Relative humidity 0~95%(no condensation) 0~95%(no condensation) 0~95%(no condensation) 0~95%(no condensation) 5 ~ 95% 0~95%(no condensation)
      EMC
      ESD EN61000-4-2, level3 EN61000-4-2, level3 EN61000-4-2, level3 EN61000-4-2, level3 EN61000-4-2, level3 EN61000-4-2, level3
      RS EN 61000-4-3, level3 EN 61000-4-3, level3 EN 61000-4-3, level3 EN 61000-4-3, level3 EN 61000-4-3, level3 EN 61000-4-3, level3
      EFT EN 61000-4-4, level3 EN 61000-4-4, level3 EN 61000-4-4, level3 EN 61000-4-4, level3 EN 61000-4-4, level3 EN 61000-4-4, level3
      CS EN 61000-4-6, level3 EN 61000-4-6, level3 EN 61000-4-6, level3 EN 61000-4-6, level3 EN 61000-4-6, level3 EN 61000-4-6, level3
      Certifications
      (*In progress)       		CE, FCC, AT&T, Verizon, T-mobile CE, FCC, Verzion,Sprint,PTCRB,IC,JATE+MIC,VCCI,RCM CE, FCC* CE, FCC* CE*, FCC* CE*, FCC*
